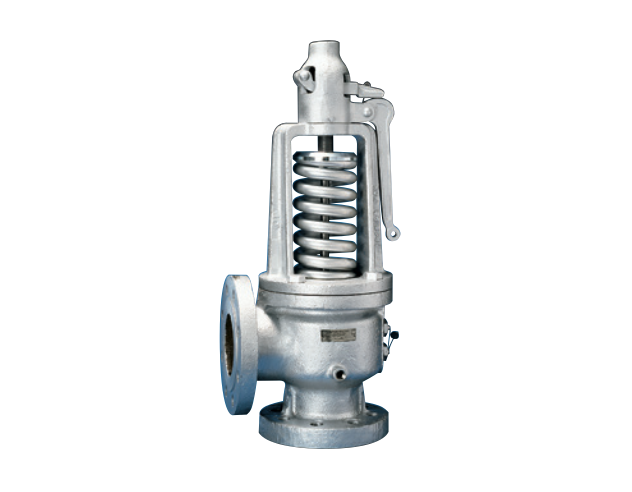

Cast steel, exposed spring valves that meet ASME section I for steam and ASME section VIII for air, gas and steam services.
Suitable for use on steam boilers and generators, pressure reducing stations, reciprocating or rotary air/gas compressors and for pressure vessels including tanks, receivers, intercoolers, oil/gas separators and lines.
-
Heavy duty construction of high quality cast steel with stainless steel full-nozzle trim for optimum performance.
-
Bolted yoke design for easy maintenance.
-
steel yoke incorporates a cover-shield
for guiding surfaces and provides for fully
exposed spring.
-
seats lapped to optical flatness for tight
shutoff.
-
dual control rings offer easy adjustability for
precision opening with minimum pre-open or
simmer and exact blowdown control.
-
Heavy duty lift lever assembly.
-
all adjustments are factory sealed to help
prevent tampering or disassembly.
-
each valve tested and inspected for pressure
setting and leakage.
-
Gags available.
Please contact us for price and availability.
