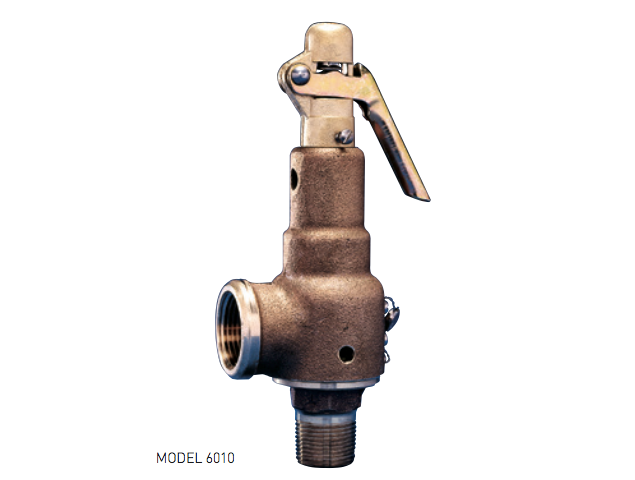

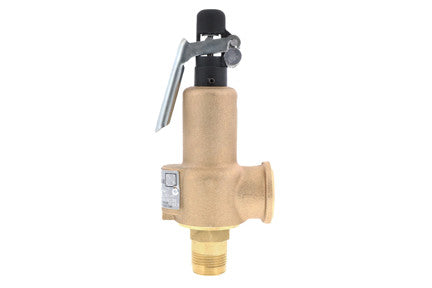

Bronze safety valves to ASME section I and VIII, steam, ‘V’ and ‘UV’; section VIII, air/gas, ‘UV’ National Board certified including models to ASME section IV, steam ‘HV’. PED certified for non-hazardous gas.
These valves are suitable for use on steam boilers and generators, reciprocating or rotary, portable or stationary air/gas compressors, intercoolers and aftercoolers. Also for pressure vessels containing steam, air or non-hazardous gas and on pressure reducing stations.
-
O-ring seats available for exceptional leak- free performance, reduced maintenance cost, multiple cycles with tight shutoff and improved seating integrity.
-
Heavy duty casting.
-
Wide hex on valve nozzle provides clearance
for easy installation.
-
Seats lapped to optical flatness.
-
Dual control rings offer easy adjustability for
precise opening with minimum pre-open or
simmer and exact blowdown control.
-
Pivot between disc and spring corrects
misalignment and compensates for spring
side thrust.
-
Grooved piston type disc reduces sliding area
and friction.
-
Heavy duty lift lever assembly.
-
Each valve tested and inspected for pressure
setting and leakage.
Please contact us for price and availability.
