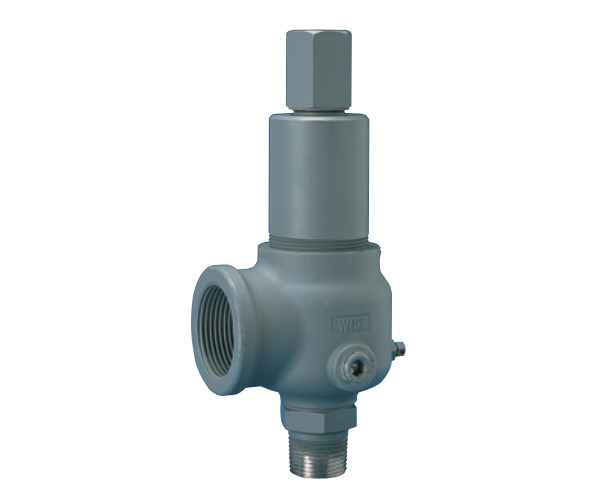

Bronze, steel and stainless steel safety relief valves for air, gas, steam, liquid and vacuum service that meet ASME Section VIII, ‘UV’; Section I, ‘V’, are National Board certified and PED certified for non-hazardous gas.
Suitable for air/gas compressors, liquid filled pressure vessels/systems, high temperature/ pressure hot water boilers,for pressure vessels containing air, gas or steam and process and industrial applications requiring steel/stainless steel construction. Also for vacuum service.
-
Heavy duty cast valve bodies.
-
Seats lapped to optical flatness.
-
Available with resilient soft seats for superior
leak-free performance.
-
Standard SS spring for
temperatures to 550°F (288°C).
Optional alloy spring to 800°F (427°C).
-
Threaded cap standard (back pressure tight).
Maximum back pressure 50 psig [3.4 barg].1
-
Hex on valve nozzle provides for easy
installation.
-
Warn ring offers easy adjustability.
-
Pivoting disc design offers exceptional seat
alignment.
-
Guide to nozzle ratio reduces friction.
-
Full nozzle design for optimum flow
performance.
-
Threaded side outlet for piped off discharge to
eliminate fugitive emissions.
-
Each valve tested and inspected for pressure
setting and leakage.
Please contact us for price and availability.
